What is Chirp Sonar by Mark Garry USA

What is Chirp Sonar by Mark Garry USA

Posted by Mark Garry for Simrad on 21st Jul 2015

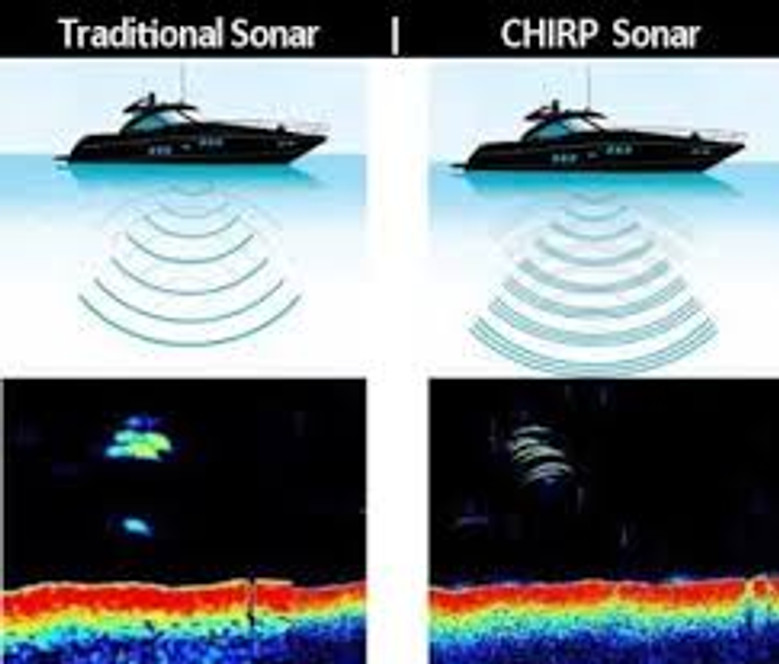

How Does CHIRP Sonar Work?

When you send a sonar pulse into the water, the sound waves travel through the water and bounce back when they hit an object or fish. The sonar system then calculates the distance based on how long it takes for the pulse to return. Traditional sonar systems often use a single frequency (for example, 200kHz), which limits the amount of detail and clarity it can provide.

CHIRP sonar, however, sends out a range of frequencies from low (around 50 kHz) to high (up to 250 kHz or more), depending on the depth and target you’re trying to locate. The low-frequency pulses provide better depth penetration, while the higher frequencies provide more detailed, high-resolution imagery. By transmitting a continuous sweep of these frequencies, CHIRP sonar is able to build a more accurate, detailed image of the underwater environment.

Key Benefits of CHIRP Sonar

1. Enhanced Image Clarity

One of the most noticeable advantages of CHIRP sonar is the improved image clarity. Traditional sonar often struggles to provide clear images of fish, structures, or underwater terrain, especially in deep water or in areas with a lot of clutter. CHIRP sonar helps reduce noise and provides sharper, more defined images, allowing anglers to spot fish and underwater structures with much greater precision.

This level of clarity is especially important when fishing in areas with dense vegetation, underwater wrecks, or schools of fish. With CHIRP sonar, you’ll be able to differentiate between different species, identify fish targets, and even observe how the fish are interacting with their environment.

2. Better Target Separation

One of the challenges of traditional sonar is the difficulty in distinguishing between multiple fish or objects that are close together. CHIRP sonar excels in this area by offering better target separation. It can easily differentiate between closely spaced fish, even if they are swimming close together or near the seabed.

For example, CHIRP sonar can help anglers pinpoint fish that are hugging the bottom or detect fish in the water column without them blending into the background. This ability to separate targets is invaluable for anyone trying to fish efficiently and accurately.

3. Superior Depth Penetration

Another key benefit of CHIRP sonar is its superior depth penetration, which is particularly useful for anglers targeting species that live in deeper waters. The lower frequencies emitted by CHIRP sonar can travel further through the water, allowing anglers to see what’s beneath the surface, even at significant depths. Whether you're fishing in shallow coastal waters or deeper offshore areas, CHIRP sonar ensures that you're getting accurate readings at all depths.

4. Improved Fish Identification

Thanks to its higher resolution, CHIRP sonar is incredibly effective at distinguishing different types of fish. Whether you’re after smaller species or larger game fish, CHIRP sonar can give you a clearer picture of your targets. It can help identify fish size, shape, and behavior, which is crucial for making informed decisions on whether or not to cast your line.

Some advanced CHIRP sonar systems even offer fish ID features that provide a color-coded display to help anglers identify fish species based on their size and shape. This technology can drastically improve fishing success by helping you focus on the most promising targets.

5. Better Performance in Various Conditions

CHIRP sonar performs exceptionally well in a variety of water conditions. Whether you’re fishing in turbid or clear water, shallow or deep waters, CHIRP sonar adapts to the environment, ensuring that you get the clearest and most accurate readings possible. This versatility makes it a great tool for any fishing adventure, no matter where you're casting your line.

6. Minimal Interference

Traditional sonar often faces issues with interference, especially when there are multiple sonar systems running in close proximity (such as on crowded fishing boats). CHIRP sonar significantly reduces this issue, providing cleaner signals and minimizing cross-talk between sonar systems. This makes it ideal for use in areas with multiple anglers or boats, ensuring you get accurate readings without interference.

Applications of CHIRP Sonar

CHIRP sonar technology isn’t just limited to recreational fishing—it’s also a game-changer for professional anglers, commercial fishermen, and even scientific research. Here are some common applications:

  • Recreational Fishing: CHIRP sonar is perfect for anyone who enjoys fishing as a hobby. With its enhanced clarity and depth penetration, it helps you find fish more efficiently, identify underwater structures, and improve your overall fishing experience.

  • Commercial Fishing: Professional fishermen use CHIRP sonar to detect large schools of fish and navigate deeper waters. The precision of CHIRP sonar allows commercial fishers to optimize their catch and reduce wasted time.

  • Scientific Research: Marine biologists and oceanographers also use CHIRP sonar to conduct research on underwater ecosystems, marine life behavior, and ocean floor mapping. The detailed imagery and target separation capabilities make CHIRP sonar an essential tool for studying the ocean.

Conclusion

CHIRP sonar is one of the most innovative advancements in sonar technology, offering a huge leap in the quality, clarity, and accuracy of underwater imaging. By using a range of frequencies, CHIRP sonar provides a level of detail and precision that traditional sonar systems simply can't match. Whether you’re fishing in shallow waters or targeting deep-sea monsters, CHIRP sonar gives you a clearer, more accurate view of the underwater world, increasing your chances of a successful catch.

So, if you’re looking to take your fishing game to the next level, it might be time to upgrade to a CHIRP sonar system. With better clarity, enhanced depth penetration, and improved target separation, you’ll be able to locate fish like never before, making your time on the water more productive and enjoyable!



You said:
add brands that offer chirp sonar
ChatGPT said:

What is CHIRP Sonar and How Does It Revolutionize Fishing?

Sonar technology has played a pivotal role in the world of fishing for many years. It's a key tool that helps anglers locate fish, understand underwater structures, and navigate challenging waters. However, not all sonar systems are created equal. One of the most innovative and advanced sonar technologies available today is CHIRP sonar.

If you’ve ever been out on the water and wondered how fish finders can deliver such detailed underwater imagery, chances are, CHIRP sonar technology is at work. But what exactly is CHIRP sonar, and how does it benefit anglers? Let’s dive into the world of CHIRP sonar and explore why it’s become a game-changer for both recreational and professional fishermen.

What is CHIRP Sonar?

CHIRP stands for Compressed High-Intensity Radar Pulse, and it’s a sonar technology that is revolutionizing the way we view underwater environments. Traditional sonar systems work by sending a single frequency pulse into the water and waiting for it to bounce back from the seabed or objects like fish. However, CHIRP sonar takes a different approach. Rather than using a single frequency, CHIRP sonar emits a range of frequencies over a period of time—hence the name "compressed high-intensity pulse."

By using multiple frequencies, CHIRP sonar creates a much more detailed and clearer picture of what’s below the surface. These frequencies can vary from low to high, allowing for better resolution, improved depth penetration, and a more precise depiction of fish, structures, and other underwater features.

How Does CHIRP Sonar Work?

When you send a sonar pulse into the water, the sound waves travel through the water and bounce back when they hit an object or fish. The sonar system then calculates the distance based on how long it takes for the pulse to return. Traditional sonar systems often use a single frequency (for example, 200kHz), which limits the amount of detail and clarity it can provide.

CHIRP sonar, however, sends out a range of frequencies from low (around 50 kHz) to high (up to 250 kHz or more), depending on the depth and target you’re trying to locate. The low-frequency pulses provide better depth penetration, while the higher frequencies provide more detailed, high-resolution imagery. By transmitting a continuous sweep of these frequencies, CHIRP sonar is able to build a more accurate, detailed image of the underwater environment.

Key Benefits of CHIRP Sonar

1. Enhanced Image Clarity

One of the most noticeable advantages of CHIRP sonar is the improved image clarity. Traditional sonar often struggles to provide clear images of fish, structures, or underwater terrain, especially in deep water or in areas with a lot of clutter. CHIRP sonar helps reduce noise and provides sharper, more defined images, allowing anglers to spot fish and underwater structures with much greater precision.

This level of clarity is especially important when fishing in areas with dense vegetation, underwater wrecks, or schools of fish. With CHIRP sonar, you’ll be able to differentiate between different species, identify fish targets, and even observe how the fish are interacting with their environment.

2. Better Target Separation

One of the challenges of traditional sonar is the difficulty in distinguishing between multiple fish or objects that are close together. CHIRP sonar excels in this area by offering better target separation. It can easily differentiate between closely spaced fish, even if they are swimming close together or near the seabed.

For example, CHIRP sonar can help anglers pinpoint fish that are hugging the bottom or detect fish in the water column without them blending into the background. This ability to separate targets is invaluable for anyone trying to fish efficiently and accurately.

3. Superior Depth Penetration

Another key benefit of CHIRP sonar is its superior depth penetration, which is particularly useful for anglers targeting species that live in deeper waters. The lower frequencies emitted by CHIRP sonar can travel further through the water, allowing anglers to see what’s beneath the surface, even at significant depths. Whether you're fishing in shallow coastal waters or deeper offshore areas, CHIRP sonar ensures that you're getting accurate readings at all depths.

4. Improved Fish Identification

Thanks to its higher resolution, CHIRP sonar is incredibly effective at distinguishing different types of fish. Whether you’re after smaller species or larger game fish, CHIRP sonar can give you a clearer picture of your targets. It can help identify fish size, shape, and behavior, which is crucial for making informed decisions on whether or not to cast your line.

Some advanced CHIRP sonar systems even offer fish ID features that provide a color-coded display to help anglers identify fish species based on their size and shape. This technology can drastically improve fishing success by helping you focus on the most promising targets.

5. Better Performance in Various Conditions

CHIRP sonar performs exceptionally well in a variety of water conditions. Whether you’re fishing in turbid or clear water, shallow or deep waters, CHIRP sonar adapts to the environment, ensuring that you get the clearest and most accurate readings possible. This versatility makes it a great tool for any fishing adventure, no matter where you're casting your line.

6. Minimal Interference

Traditional sonar often faces issues with interference, especially when there are multiple sonar systems running in close proximity (such as on crowded fishing boats). CHIRP sonar significantly reduces this issue, providing cleaner signals and minimizing cross-talk between sonar systems. This makes it ideal for use in areas with multiple anglers or boats, ensuring you get accurate readings without interference.

Popular Brands Offering CHIRP Sonar Technology

As CHIRP sonar has become an essential tool for anglers, many top marine electronics brands have integrated CHIRP sonar technology into their fish finders and sounders. Here are some leading brands that offer CHIRP sonar:

1. Lowrance

Lowrance has been a pioneer in the sonar and fish finding industry, and their HDS series of fish finders are among the most popular units for anglers worldwide. Lowrance’s CHIRP sonar technology is featured in their high-end models, such as the HDS Live and HDS Carbon series. With excellent clarity, target separation, and advanced features like FishReveal™, Lowrance’s CHIRP technology offers one of the clearest and most accurate views of the underwater world.

2. Garmin

Garmin is another well-known brand that offers CHIRP sonar across its wide range of marine electronics. Garmin’s Striker and EchoMap series integrate CHIRP sonar to deliver crisp images of underwater structures, schools of fish, and precise bottom contours. Garmin’s ClearVü and SideVü scanning sonar also provide detailed side and down imaging, further enhancing the overall fishing experience.

3. Simrad

Simrad offers high-quality sonar systems with CHIRP technology built into their NSO evo3 and NSS evo3 displays. These fish finders deliver exceptional sonar clarity, whether you’re fishing in shallow waters or targeting deeper depths. The CHIRP technology used by Simrad enhances target separation and offers superior depth penetration, which is ideal for anglers looking for precision when scanning underwater environments.

4. Furuno

Furuno’s CHIRP sonar offerings are renowned for their excellent performance in both recreational and commercial fishing. Their DFF3D sonar is an advanced CHIRP sonar system that provides high-resolution imagery with multiple frequency options, allowing for unparalleled detail of fish and underwater features. Furuno’s systems are also known for their reliability, making them a top choice for serious anglers.

5. Raymarine

Raymarine offers CHIRP sonar through their Axiom and Dragonfly series of fish finders. The Axiom line integrates Raymarine’s advanced sonar technology, which includes RealVision 3D, combining CHIRP sonar with 3D imagery and live views of fish and underwater terrain. This innovative technology allows anglers to view their surroundings from multiple angles, providing a whole new level of insight into the water below.

6. Humminbird

Humminbird is another well-established brand offering CHIRP sonar in its Helix and Solix fish finders. Humminbird's CHIRP sonar is designed to provide anglers with precise, high-resolution images, even in deep water. The brand also integrates Mega Imaging+ with CHIRP sonar for both side and down imaging, which offers an incredible level of detail for those looking to spot fish and structures.

Applications of CHIRP Sonar

CHIRP sonar technology isn’t just limited to recreational fishing—it’s also a game-changer for professional anglers, commercial fishermen, and even scientific research. Here are some common applications:

  • Recreational Fishing: CHIRP sonar is perfect for anyone who enjoys fishing as a hobby. With its enhanced clarity and depth penetration, it helps you find fish more efficiently, identify underwater structures, and improve your overall fishing experience.

  • Commercial Fishing: Professional fishermen use CHIRP sonar to detect large schools of fish and navigate deeper waters. The precision of CHIRP sonar allows commercial fishers to optimize their catch and reduce wasted time.

  • Scientific Research: Marine biologists and oceanographers also use CHIRP sonar to conduct research on underwater ecosystems, marine life behavior, and ocean floor mapping. The detailed imagery and target separation capabilities make CHIRP sonar an essential tool for studying the ocean.

Conclusion

CHIRP sonar is one of the most innovative advancements in sonar technology, offering a huge leap in the quality, clarity, and accuracy of underwater imaging. By using a range of frequencies, CHIRP sonar provides a level of detail and precision that traditional sonar systems simply can't match. Whether you’re fishing in shallow waters or targeting deep-sea monsters, CHIRP sonar gives you a clearer, more accurate view of the underwater world, increasing your chances of a successful catch.

With leading brands like Lowrance, Garmin, Simrad, Furuno, Raymarine, and Humminbird offering CHIRP sonar technology, you can choose from a wide range of high-quality fish finders to enhance your fishing experience. So, if you’re looking to take your fishing game to the next level, it might be time to upgrade to a CHIRP sonar system. With better clarity, enhanced depth penetration, and improved target separation, you’ll be able to locate fish like never before, making your time on the water more
