Product Description

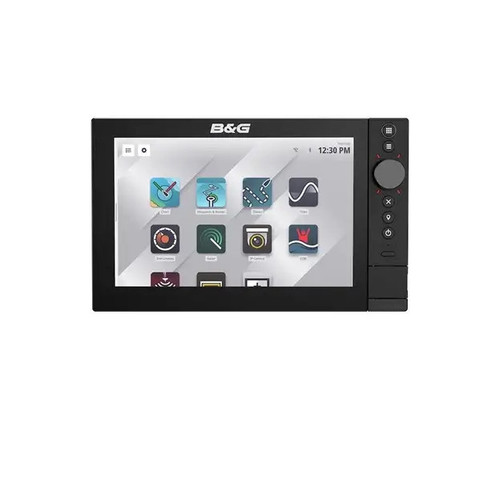

B&G Zeus SR-16 World base map - No sonar
Take Your Sailing to the Next Level with the B&G Zeus SR-16" Chartplotter
When you're out on the water, having reliable and advanced technology is key to making confident decisions. The B&G Zeus SR Chartplotter is engineered to enhance your sailing experience, powered by an 8-core processor that delivers smooth, responsive performance. This powerful device provides high-speed navigation features to help you stay ahead of the game in all conditions.
Intuitive Interface for Every Sailing Activity
The Zeus SR boasts a redesigned, user-friendly interface that makes accessing essential features quick and easy. Whether you're cruising, racing, or anchoring, you can tailor the display to your preferences. With various control options, you can maintain full command over your vessel, no matter how demanding the conditions.
Next-Level Navigation with C-MAP X-Gen Technology
Take your charting to the next level with C-MAP X-Gen charts. These charts provide seamless zooming and crisp, high-definition details, offering local insights that help you discover new places and navigate confidently. The DISCOVER X charts come with a special night mode, allowing for detailed navigation even in low-light conditions. For the highest accuracy, the REVEAL X upgrade integrates shaded relief and satellite imagery, giving you a comprehensive and precise view of your environment.
Safety Features You Can Trust
The Zeus SR prioritizes your safety with the C-MAP® Safety Alerts feature, which warns you about potential hazards, such as shallow waters and nearby obstacles. This proactive system helps you stay alert and avoid accidents, ensuring safer navigation.
Easy Chart Management and Updates
With the X-Chart Manager, updating your C-MAP® charts has never been easier. You can select specific areas for fast, efficient downloads directly from the device, keeping your charts current with the latest enhancements and updates.
Flawless Integration for Advanced Connectivity
The Zeus SR Chartplotter offers seamless integration with a wide range of onboard systems. You can connect it effortlessly to HALO® radar, B&G® processors, Triton instruments, wind sensors, and much more. It also includes Wi-Fi 5, Gigabit Ethernet, and NMEA 2000® networking, supporting up to four IP cameras. The operating system ensures all your systems are connected, improving safety and situational awareness on the water.
Key Features at a Glance
- SolarMAX™ IPS touchscreen for excellent visibility from any angle, even in direct sunlight or while wearing polarized sunglasses.
- Modes for cruising, racing, and anchoring, allowing you to tailor the system for your activity.
- Advanced sailing features such as SailSteer™, LayLines, Routes, and StartLine for enhanced navigation and performance.
- C-MAP® DISCOVER® X and REVEAL® X charts for detailed and accurate mapping.
- Integration with HALO® radar, B&G® processors, Triton2, Nemesis® instruments, and more.
- B&G® App integration, offering a 12-month premium subscription after registering a C-MAP® X Chart.
- Wi-Fi 5, Gigabit Ethernet, and NMEA 2000® networking capabilities, supporting up to four IP video cameras.
- Simple installation with the Set-up Wizard for a hassle-free setup.
Why Choose the B&G Zeus SR?
The B&G Zeus SR Chartplotter provides everything you need to perform at your best on the water. From advanced charting and navigation tools to seamless integration with your onboard systems, this device offers the highest level of performance and reliability. Whether you're planning a leisurely cruise or aiming for victory in a race, the Zeus SR is the ultimate solution for precision navigation, safety, and control.
Ready to take your sailing to new heights? The B&G Zeus SR is your trusted companion for every adventure on the water.
SPECIFICATIONS of the B&G Zeus SR-16
|
DISPLAY |
|
|
Display Backlight Color |
White |
|
Display Resolution |
1280 x 800 |
|
Display Size |
16 inches |
|
Screen Brightness |
1200 nits |
|
Viewing Angles |
80° top/bottom, 80° left/right |
|
Connectivity |
Bluetooth Bluetooth 4.0 with support for Bluetooth Classic (currently not used) |
|
Ethernet Ports |
1 port (X-Coded M12 GbE) 1 port (yellow, 5-pin) |
|
Connectivity WiFi |
Wi-Fi 5 (IEEE 802.11ax) |
|
PC Connectivity No
|
No |
|
SD Card Storage
|
2x (microSD®, SDHC®) |
| Video
|
Video In, IPCAM-1, FLIR 232/300 series. ONVIF IP Camera |
| Chart Format
|
C-MAP Tile (CMT) Discover X, Reveal X |
| Charts Supported
|
C-MAP Discover™ X, C-MAP Reveal™ X. Third party charts CMOR, StikeLines (check with provider for available content) |
| AUTOPILOT
|
|
| Manouevres
|
Turn Patterns U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth |
| Steering Modes
|
Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav |
|
ELECTRICAL
|
|
|
Power Consumption
|
max28 W |
|
Recommended Fuse Rating
|
5A |
|
Supply Voltage
|
12/24 V DC (10 - 31.2 V DC min - max) |
|
ENVIRONMENT
|
|
|
Humidity
|
IEC 60945 Damp heat 66°C (150°F) at 95% relative (18 hr) |
| Operating Temperature Range
|
-15°C to 55°C (5°F to 131°F) |
|
Shock Vibration
|
100,000 cycles of 20 G |
| Storage Temperature Range |
-20°C to 60°C (-4°F to 140°F)
|
| Waterproofrating
|
IPX6 and IPX7 |
| Correction |
10 Hz high speed update (internal) |
| GPS Receiver Channels |
32 Channels |
| Position Accuracy
|
Horizontal Accuracy 3 m (9.8 ft) |
| Update rate
|
10Hz |
| MFD
|
|
| AISReceive
|
AIS data over NMEA 2000 |
| Autopilot
|
NAC-1, NAC-2, NAC3, NAC-D compatible |
| Cartography included
|
World wide basemap (not for navigation).Detailed chart card required |
| Digital Switching
|
Czone / DDS |
| GPS
|
10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS. SBAS (WAAS) |
| Sonar Compatibility
|
No built-in Echosounder ports. Compaible with Network Sonar modules S3100, S5100, Other MFDs with echosounder ports |
| Waypoints, Routes, Tracks
|
10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: Zeus3, Zeus3 GH maximums will apply if on the same network |
|
PHYSICAL
|
|
|
Compass Safe |
35 cm (1.15 ft) |
| Dimensions W x H x D
|
Display only: 287.9 mm x 176.1 mm x 79.6 mm (11.33″ x 6.93″ x 3.13″) With bracket: 315.8 mm x 196.5 mm x 79.6 mm (12.43″ x 7.73″ x 3.13″) |
| Mounting Type |
Bracket mount (bracket supplied). Rear mount (brackets supplied)
|
| Weight |
1.8 kg (3.97 lb)
|
|
Warranty Period
|
2 Years |
