Product Description
No Antenna Bar Or Cable Supplied
Pushing the boundaries of what is possible with conventional Radar technology, the DRS X-Class Series mark yet another leap forward for FURUNO. Improved in almost all aspects features improved short range detection, as well as an impressive long range detection. Utilizing technology previously only available on rugged commercial-grade radars, the DRS6A X-Class offers stunning performance and reliability. For the fisherman, the new "Bird Mode" on NavNet TZtouch/TZtouch2 gives you incredible bird detection performance.
Features
- Enhanced target detection, both short and long range
- Minimum detection range of 20 m approx.
- Fast Target Tracking™, display up to 30 targets simultaneously
- Instant target vectors show heading and speed info with Fast Target Tracking™
- Bird Mode, track birds to find the best fishing grounds
- Moving targets (vessels and birds) display targets trails for easy identification
- Choose antenna size from 3.5', 4' or 6'
- New gearbox pedestal unit is 20% lighter than previous DRS Series unit, updated low noise motor
- No PSU unit required, simple installation
Spot flocks of birds far away, incredible performance without compromise

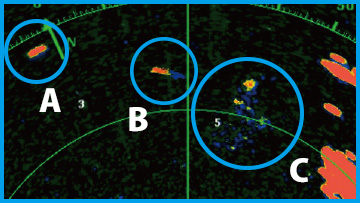

A Stationary vessel B Moving vessel C Flock of birds
Bird echoes at 5 NM, the echoes can be distinctly separated from the nearby vessel in motion. The vessel shows a straight and clear echo trail, unlike the bird echoes that are identifiable by their random motion.
-

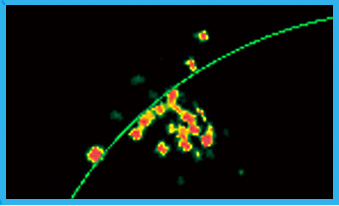

At 4 NM the bird echoes are extremely clear, and distinctly visible compared with other targets.
-
With echo trails, it's possible to discern individual birds movements.
Long and short range performance improved!
Impressive long range performance
With an excellent long range performance, you can even spot land masses in detail at great distances.
Osaka Harbor, Japan
Land 36 NM ahead
Sea 24 NM ahead

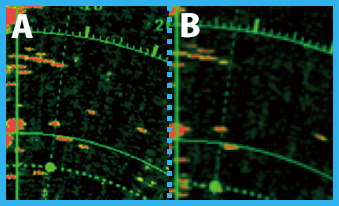

A DRS X-Class Series
B Conventional Radar echo
Excellent target separation at short range
Improved short range detection gives you unprecedented target separation for use in identifying hazardous targets.

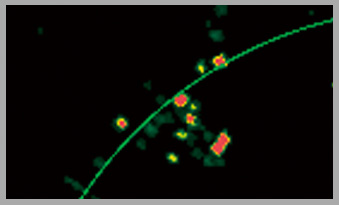

Small sailing dinghies
Dinghies at 3 NM
Conventional Radar echo
All the screenshots above are taken on 6kW output.
