Garmin GPSMAP 1022xsv 10" Chartplotter Sounder - Compact Offshore Reliability
If you want a reliable offshore unit with physical controls and a clean 10” screen, the Garmin GPSMAP 1022xsv is a proven choice.
This is a no-nonsense chartplotter and sonar combo - ideal for fishos who prefer buttons over touchscreens and want something that works every time offshore.
Why the GPSMAP 1022xsv is Still a Solid Performer
- 10” bright display with keypad and rotary control
- Built-in CHIRP, ClearVü & SideVü sonar
- Supports high-power sonar for offshore depth performance
- Garmin Marine Network + NMEA 2000 compatibility
- Works with radar, autopilot and LiveScope systems
This unit is built for reliability - simple, dependable and proven offshore.
Keypad Control – Built for Real Offshore Conditions
The GPSMAP 1022xsv uses physical buttons and a control knob, making it easy to operate in rough seas, wet hands and real fishing conditions.
No missed touches - just consistent control when it matters most.
These units feature a 10” display with keypad interface and multifunction control knob, designed for easy navigation and use offshore.
Serious Sonar Capability Built In
This unit includes CHIRP sonar along with ClearVü and SideVü scanning sonar, giving you proper fish separation and structure detail when paired with the right transducer.
Want to take it further?
Pair it with Garmin LiveScope XR systems for real-time sonar.
Perfect for Offshore Boats & Compact Helms
This is a popular option for boats where space is tighter but performance still matters.
Ideal for:
- Trailer boats heading offshore
- Boaties who prefer keypad control over touchscreens
- Reliable setups that don’t rely on touch input
Not sure if this is the right unit?
Tell us about your boat and we’ll point you in the right direction
Supply + Install Packages Available
This is where most setups go wrong - not the unit, but how it’s installed and configured.
- Correct transducer matched to your fishing style
- Clean wiring and power setup (no interference issues)
- NMEA 2000 networking done properly
- Radar and autopilot integration
- On-water tuning so it actually performs offshore
We don’t just sell the gear - we set it up properly so it actually works offshore.
What Local Boaties Say
“Perfect for my smaller setup - I didn’t want touchscreen offshore. This just works.”
- Davo, Port Macquarie
“Simple, reliable and easy to use. Shotgun set it up properly and it’s been faultless.”
- Mick, Coffs Harbour
Build Your Garmin System
- Garmin LiveScope XR Installation & Systems
- Garmin Radar Installation
- Marine Electronics Installation NSW
- View All GPSMAP Units
Garmin GPSMAP 1022xsv – Common Questions
Is keypad better than touchscreen offshore?
For rough conditions, many fishos prefer keypad control - it’s more reliable with wet hands and movement.
Does it include sonar?
Yes - built-in CHIRP, ClearVü and SideVü sonar (transducer required for full performance).
Can I add LiveScope?
Yes - this unit supports LiveScope and other Garmin sonar upgrades.
Is this good for offshore use?
Yes - especially for smaller offshore boats where reliability and simplicity matter.
Do you install in NSW?
Yes - Port Macquarie, Coffs Harbour, Forster, Taree and beyond.
Not Sure What Setup Suits Your Boat?
Every boat is different - and getting the right setup makes all the difference offshore.
Tell us about your boat and we’ll recommend the right electronics setup.
Upgrade to a Setup That Just Works
The GPSMAP 1022xsv is a proven option for fishos who want reliable performance without the fuss.
All-in-One Marine Electronics System
The Garmin GPSMAP 1022xsv is a powerful all-in-one chartplotter and sounder, built around a clear 10” display with a reliable keypad and control knob setup.
It’s designed for serious offshore use - giving you fast access to charts, sonar and system controls without relying on touchscreens. It also supports Garmin’s advanced sonar range including Panoptix and premium sonar modules (transducers sold separately).
Full Network Integration Across Your Boat
With Garmin Marine Network support, you can connect and share data between multiple displays on board.
This includes sonar, charts, radar, cameras and user data - allowing you to build a fully integrated marine electronics system.
The unit also supports both NMEA 2000 and NMEA 0183, making it compatible with autopilots, AIS, VHF radios, digital switching systems, engine data and more.
Built-in Wi-Fi Connectivity
The GPSMAP 1022xsv includes built-in Wi-Fi, allowing you to connect your smartphone or tablet for extra functionality.
Using the Garmin Helm app, you can view and control your chartplotter remotely, while the BlueChart Mobile app lets you plan routes, check weather and transfer data straight to your unit.
You can also stream and control a Garmin VIRB action camera directly from the display.
Wireless Connectivity with ANT Technology
Built-in ANT wireless connectivity allows seamless connection to compatible Garmin devices such as quatix marine watches, Nautix in-view displays, wind sensors and wireless remotes.
This gives you additional control and data access without needing extra wiring.
Advanced Sonar Capability Built In
This unit comes ready for serious fish-finding performance, with built-in CHIRP sonar along with ClearVü and SideVü scanning sonar.
When paired with the right transducer, you’ll get clear fish targets, strong bottom definition and detailed structure - not just clutter on the screen.
It also supports Panoptix and LiveScope systems, giving you real-time sonar capability when you’re ready to upgrade.
On networked setups, sonar data can be shared across multiple displays, and you can customise overlays such as radar, speed and time directly on your sonar screen.
Fast, Accurate GPS Tracking
The built-in 10 Hz GPS and GLONASS receiver updates your position up to 10 times per second, giving you smooth and accurate tracking on the screen.
This makes marking waypoints, tracking movement and navigating back to spots quick and precise.
You can store thousands of waypoints and easily return to your marks when it counts.

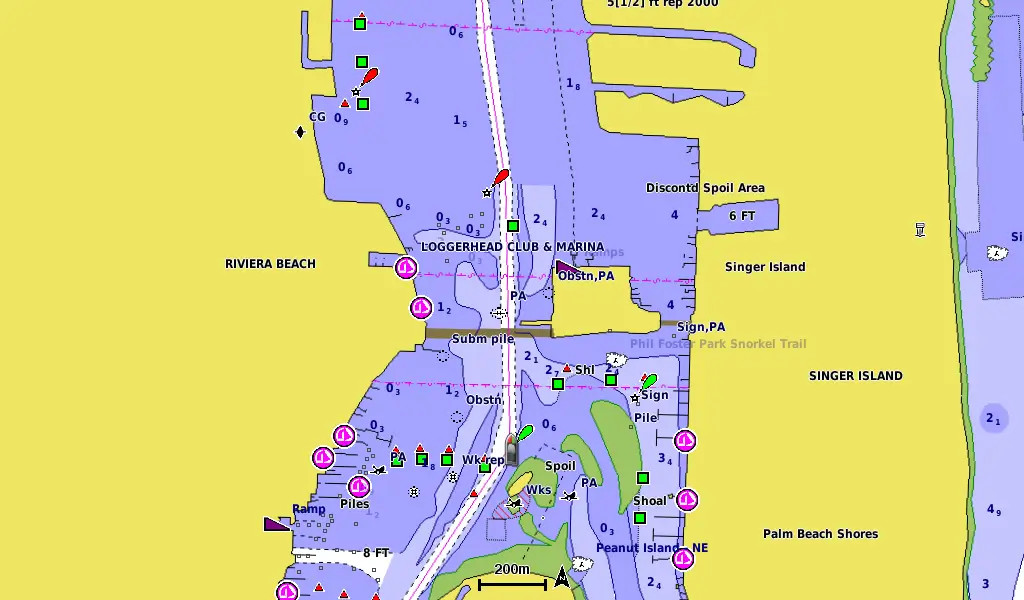

Expandable Mapping Options
The unit features dual SD card slots, allowing you to expand your mapping with additional chart options when needed.
You can upgrade your charts depending on where you fish and how detailed you want your mapping.
Create Your Own Fishing Maps
With Quickdraw Contours, you can create your own high-definition fishing maps in real time with up to 1-foot contour detail.
These maps are saved on your unit - giving you custom data tailored to your local fishing grounds.
Sailing & Navigation Features

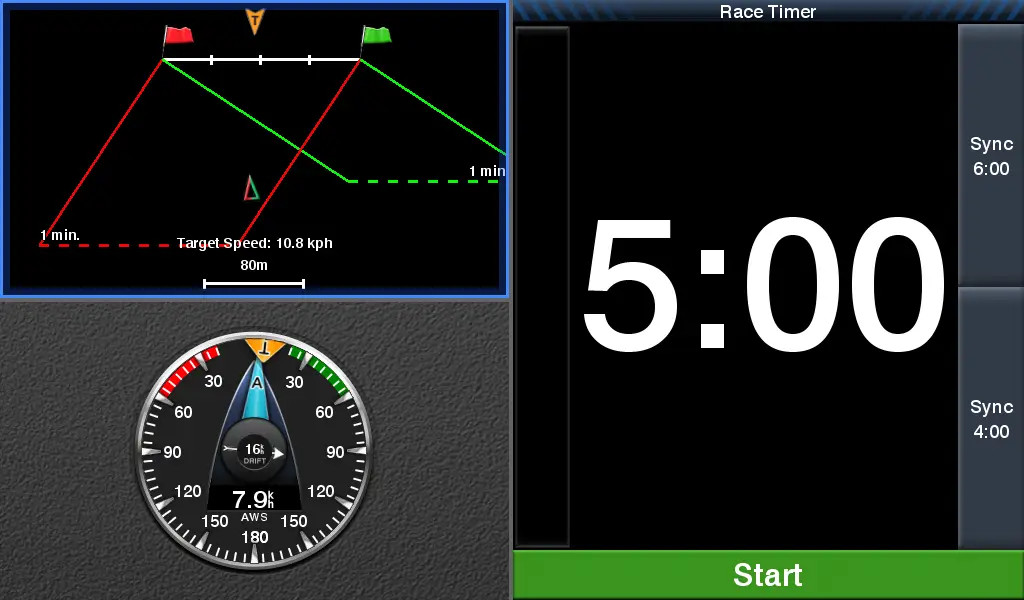

For sailing applications, the GPSMAP 1022xsv includes features like laylines, race timers and wind data to help optimise performance on the water.
It also provides detailed wind information, course tracking and drift data for better situational awareness.
Easy Data Transfer
If you’re upgrading from another system, you can transfer waypoints, routes and tracks easily using standard GPX file formats.
This makes switching over simple without losing your valuable fishing marks.
