Product Description

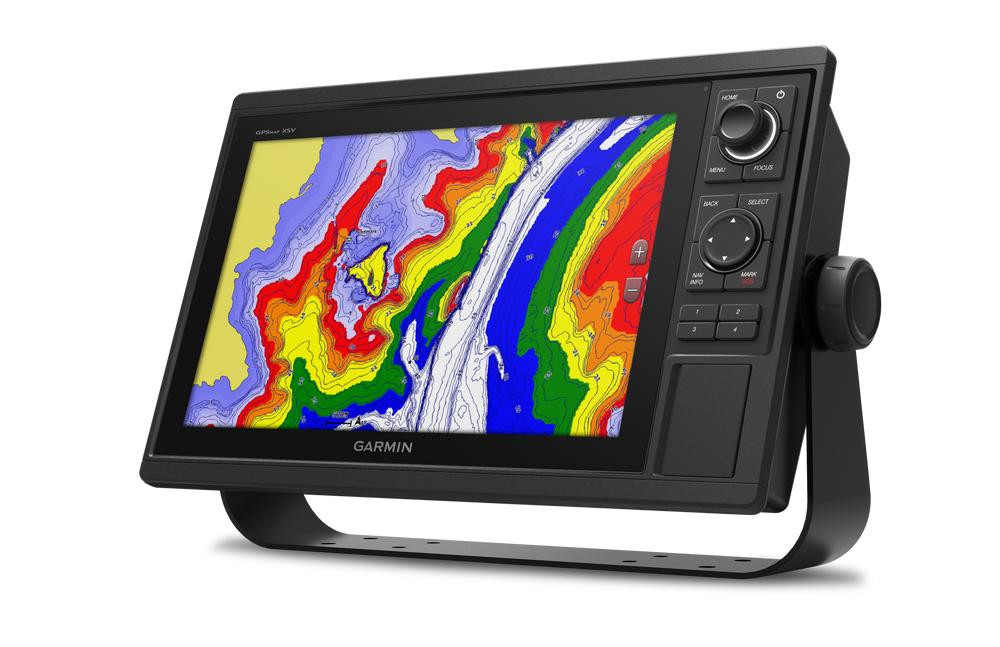

Garmin GPSMAP 1253xsv 12" Chartplotter Sounder with Navionics+ - Ready to Fish
If you want a chartplotter that’s ready to go straight out of the box with charts, sonar and serious performance, the Garmin GPSMAP 1253xsv with Navionics+ is one of the best all-round setups we install.
You get detailed mapping, clean sonar and fast processing in one unit - no mucking around with extra charts or add-ons. Just power it up and go fishing.
Why the GPSMAP 1253xsv is a Smart All-Round Offshore Setup
-
12” high-resolution IPS display - clear in full sun and wide viewing angles
- Built-in CHIRP, ClearVü & SideVü sonar for proper fish detection
- Fast processor for smooth charts and split screens
- Garmin Marine Network + NMEA 2000 connectivity
- Supports radar, autopilot and LiveScope upgrades
This isn’t just a sounder - it’s a full marine electronics system you build your boat around.
Preloaded Navionics+ Charts – Ready to Fish Straight Away
This unit comes with Garmin Navionics+ mapping already loaded - giving you detailed coastal charts, depth contours and Auto Guidance+ straight out of the box.
No extra purchases, no setup headaches - just power it up and go fishing.
Serious Sonar Performance Built In
The GPSMAP 1253xsv supports CHIRP, ClearVü and SideVü sonar, along with high-power traditional sonar when paired correctly - giving you proper fish separation and structure detail offshore.
Perfect for Offshore & Coastal Fishing
This is one of the most common setups we install around Port Macquarie, Coffs and along the East Coast.
Ideal for:
- Trailer boats heading offshore regularly
- Boaties upgrading from entry-level sounders
- Fishos wanting mapping + sonar sorted in one clean setup
Not sure if this is the right unit?
Tell us about your boat and we’ll point you in the right direction
Supply + Install Packages Available
This is where most setups go wrong — not the unit, but how it’s installed and configured.
- Correct transducer matched to your fishing style
- Clean wiring and power setup (no interference issues)
- NMEA 2000 networking done properly
- Radar and autopilot integration
- On-water tuning so it actually performs offshore
We don’t just sell the gear - we set it up properly so it actually works offshore.
Want to take it to the next level?
This unit pairs perfectly with Garmin LiveScope XR systems for real-time sonar.
Supply + Install Packages Available
This is where most setups go wrong - not the unit, but how it’s installed and
configured.
- Correct transducer matched to your fishing style
- Clean wiring and power setup (no interference issues)
- NMEA 2000 networking done properly
- LiveScope and radar integration ready
- On-water tuning so it actually performs offshore
We don’t just sell the gear — we set it up properly so it actually works offshore.
Not sure what you need?
Ready to upgrade?
View Supply & Install Packages
Quick question?
Contact the Shotgun Marine team
What Local Boaties Say
“Having Navionics already loaded made it dead easy - we were marking fish first trip out.” - Spud, Port Macquarie
“Shotgun set it up properly and the difference is unreal. Seeing bait and structure properly now.” - Travis, Forster
Build Your Garmin System
Garmin LiveScope XR Installation & Systems
Marine Electronics Installation NSW
Garmin GPSMAP 1253xsv – Common Questions
Does this come with charts?
Yes - it includes Garmin Navionics+ charts with detailed mapping and updates.
Is this a good all-in-one setup?
Yes — this is one of the best all-round packages if you want charts, sonar and upgrade options all in one unit.
Can I add LiveScope later?
Absolutely. This unit fully supports LiveS
cope and other Garmin upgrades.
Does it include sonar?
Yes - built-in CHIRP, ClearVü and SideVü sonar (transducer required for full performance).
Do you install in NSW?
Yes -Port Macquarie, Coffs Harbour, Forster, Taree and beyond.
Not Sure What Setup Suits Your Boat?
Every boat is different - hull type, fishing style and where you fish all matter.
Tell us about your boat and we’ll recommend the right electronics setup.
Ready to Upgrade Your Electronics?
The GPSMAP 1253xsv with Navionics+ is one of the easiest ways to step into a proper offshore setup.
Get it supplied, installed and tuned properly by Shotgun Marine.
It has integrated assistance for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers not included & sold separately). It features a large, intense & bright screen combined with a fast and user f
riendly keypad interface with user-programmable keys and a multifunction control knob.
Experience an advanced all-in-1 solution with Garmin's 12-inch GPSMAP 1222xsv keyed combo.
Complete Network Sharing
Garmin Marine Network assistance allows sharing of sonar, maps, user data, dome or open-array radar, IP video cameras and Panoptix ™ sonar among multiple systems. Consists of NMEA 2000 network connectivity as well as NMEA 0183 support for auto-pilots, digital switching, climate & weather, FUSION-Link, VHF, AIS as well as other sensing units and transducers.
Built-in SailAssist Features
Product Specifications
| Display size |
10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal) |
| Display resolution | 1280 x 800 pixels |
| Physical dimensions | 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 mm) |
| Receiver | 10 Hz high-sensitivity |
| Water rating | IPX7 |
| Weight |
5.2 lbs. (2.34 kg) |
| Mounting options | Bail or flush |
| Display type | WXGA display |
| Antenna | Internal or external over NMEA 2000 |
Maps & Navigation
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Preloaded maps | None |
| Accepts data cards | 2 SD™ cards |
Features
| ClearVü |
Yes with CHIRP (built-in) |
| Waypoints | 5,000 |
| Wireless connectivity | Yes |
| Transmit power | 1 kW traditional; 1 kW CHIRP |
| NMEA 0183 compatible | Yes |
| Water temperature log and graph | Yes |
| GCV™ Black Box sonar support | Yes |
| Wireless mouse compatible | No |
| NMEA 0183 input ports |
1 |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| NMEA 2000® compatible | Yes |
| ActiveCaptain compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Sonar recording | Yes |
| Garmin Meteor™ Audio System compatible | Yes |
| Garmin Marine Network™ ports |
2 |
| Garmin Sonar compatible |
Yes (built-in) |
| GSD™ Black Box sonar support | Yes |
| Sonar history rewind | Yes |
| Garmin SmartMode compatible (customizable monitor presets) | Yes |
| Wireless remote compatible | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| Maximum depth | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Transducer pin numbers | 12 |
| Bottom lock (shows return from the bottom up) | Yes |
| NMEA 0183 output ports |
1 |
| Tide tables | Yes |
| SiriusXM™ Weather & Radio compatible | Yes |
| Power consumption |
Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A |
| Voltage range | 10-32 Vdc input |
| Garmin Radar compatible | Yes |
Upgrade to a Setup That Just Works
The GPSMAP 1222xsv is a proven unit for serious fishos who want reliability and performance without the fuss.
Get it supplied, installed and tuned properly by Shotgun Marine.
