Product Description

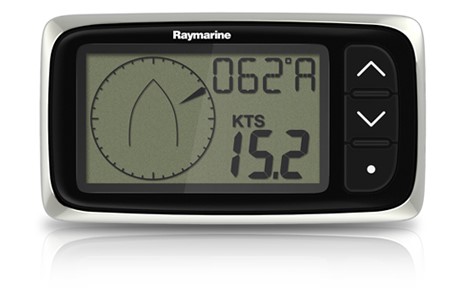

Raymarine i40 BiData Instrument Displays
Compact Digital Displays
i40 BiData
- Speed, depth, log and sea temperature.
- Two sets of data can be displayed on the one screens
- Can be customised for large or small numbers.
- SeaTalk interface (SeaTalkng when used with SeaTalk converter)
|
Dimensions |
|
|
Nominal voltage |
12V DC |
|
Operating voltage range |
10 - 16V DC |
|
Current consumptions (12V supply) typical |
Wind and Speed: 25mA | Depth: 30mA | Bidata: 35mA |
|
Current consumptions (12V supply) maximum |
100 mA |
|
Operating temperature |
0ºC to +55ºC |
|
Temperature Storage |
-30ºC to +70ºC |
|
Relative humidity |
Can be up to 93% |
|
Water proofing |
IPX6 Specs |
|
Connections |
SeaTalk, Transducer connections. Marine industry CAN systems compatible |
|
Conformance |
Europe 2004/108/EC |
