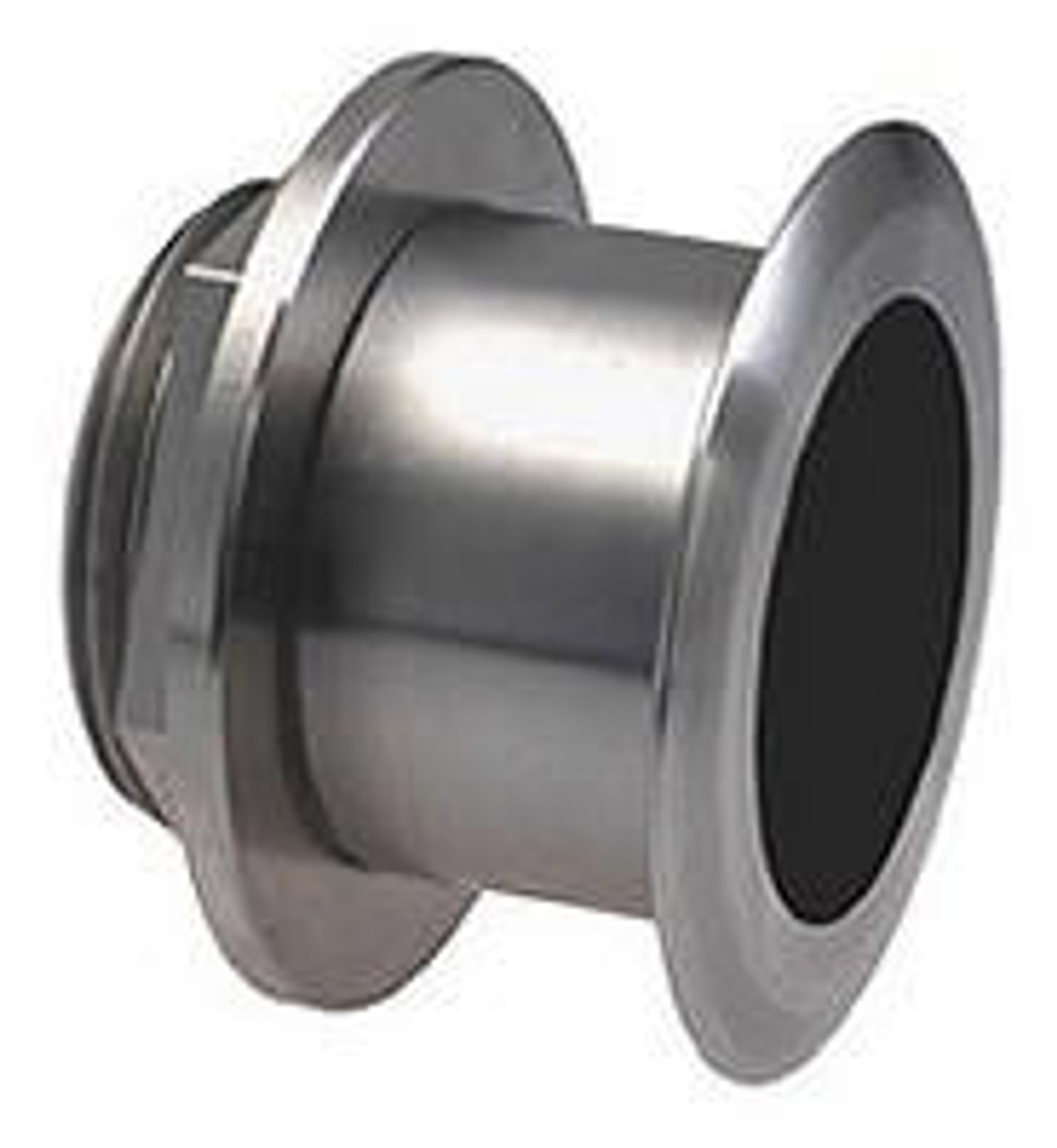

Airmar SS175C-12-HW 1kW CHIRP Thru-Hull 12-Degree High Frequency Wide Beam

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! CHIRP transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Features:

• 1kW Power
• Wide 25° constant beamwidth
• SS175CL—7-Internal Broadband Ceramic
• SS175CM & SS175CH—1-Internal Broadband Ceramic Assembly
• Available in 0°, 12°, or 20° tilted version
• Depth & fast-response water-temperature sensor
• Stainless Steel transducer housing
• Hull Type: Steel or aluminum
• Boat Size: Up to 11m (36’)
• Useable shaft length ~ 71mm (2.80”)
• Exclusive Transducer ID
• Airmar 41-612-1-01

Frequencies:

• Low-Frequency (L)
• Low—Chirps from 40 kHz to 60 kHz, 32° to 21° beamwidth
• 20 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 50 kHz plus everything else in the bandwidth
• Medium-Frequency (M)
• Medium—Chirps from 85 kHz to 135 kHz, 24° to 16° beamwidth
• 50 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth.
• High-Frequency (H)
• High—Chirps from 130 kHz to 210 kHz, 15° to 9° beamwidth
• 80 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth

Note: Medium-frequency benefits include the ability to sound deeper than the high-frequency, along with better target resolution than the low-frequency.
