B&G Zeus³S Glass Helm 24" Chartplotter

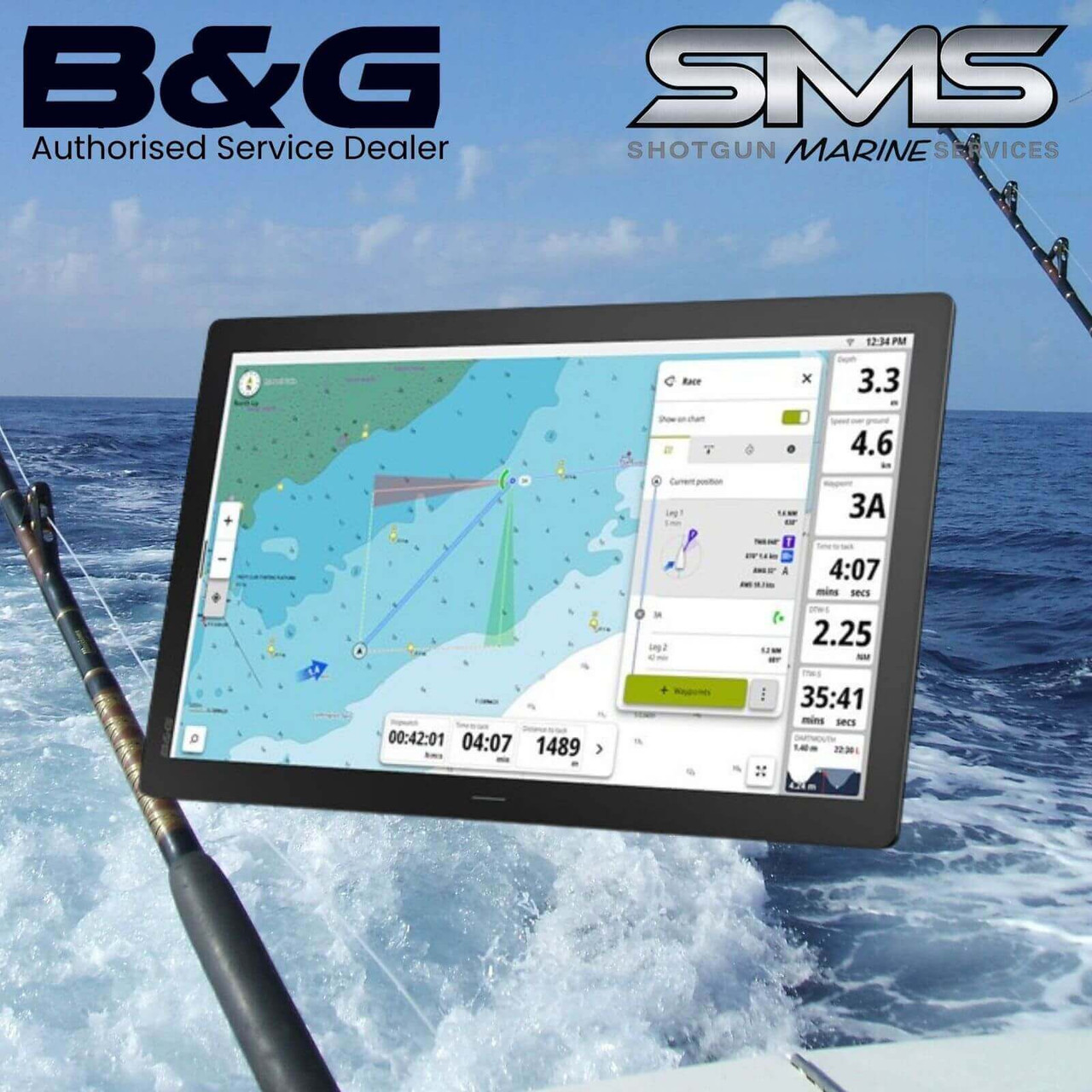

The B&G Zeus³S Glass Helm 24" is the flagship of B&G's integrated glass bridge range, built for blue water cruisers, multihulls and superyachts that want a true glass helm navigation system rather than a standalone chartplotter. A new iMX8 six-core processor delivers twice the response speed of the previous generation, driving a 24" Full HD (1920x1080) widescreen display at 1200 nits with 80°/80° viewing angles, so the screen stays clear from any position at the helm, even through polarised sunglasses.
This is the Display Only version, with the processor built into the display itself. A separate Processor + Monitor system is also available if you want one processor driving two independent displays. Talk to Shotgun Marine about which configuration suits your helm layout.
What's In The Box
- B&G Zeus³S Glass Helm 24" Display (integrated processor)
- NMEA 2000 Micro-C Low Loss 4 Way Joiner
- N2K-PWR-RD Network Power Node
- TR-120-KIT Network Terminator Kit
- NMEA 2000 6ft Network Extension Cable
- RJ45 Ethernet Adapter Cable
- MO16/19/24 Cable Retention Bracket
- Rear mount bracket kit for MO16/19/24 monitors
- MO24 Bezels
- B&G Zeus³ Glass Helm 24" Monitor Sun Cover
Why the Glass Helm 24" Earns Its Spot at the Helm
- iMX8 six-core processor - twice the response speed of the previous Glass Helm generation
- 24" Full HD widescreen display, 1200 nits, 80°/80° viewing angles, readable with polarised sunglasses
- Up to 6-way split screen for charts, radar, sonar and autopilot at once
- Full B&G sailing suite: SailSteer, RacePanel, LayLines, SailingTime and PredictWind
- Built-in Wi-Fi and Bluetooth, 5x Ethernet ports, HDMI and video inputs
- Connects to Halo Radar, autopilot, ForwardScan, NMEA 2000 and NMEA 0183 networks
- IPX6 rated on the front when panel mounted correctly
- World basemap included, C-MAP and Navionics cartography available separately
- 2 year manufacturer warranty
Why Buy From Shotgun Marine
- Authorised B&G Dealer & Installer
- Genuine B&G stock, full manufacturer warranty
- Australia wide supply, NSW installation available
- Local, experienced advice on glass helm system design and layout
Professional Installation Available
Supply only on this listing. Glass Helm systems are typically part of a larger integrated helm build, custom panel mounting, network wiring, radar and autopilot integration. Shotgun Marine can quote installation separately once we know your boat and helm layout, contact us for a tech consult.
Who This Suits
Owners of blue water cruising yachts, multihulls and superyachts who want a fully integrated glass bridge system built around B&G's sailing features, rather than a single standalone chartplotter. If you're after a simpler 9" or 12" chartplotter for a smaller cruiser, see the B&G Zeus S range instead.
FAQs
What sizes does the Glass Helm range come in?
16", 19" and 24", available as Display Only (integrated processor) or as a standalone Processor driving separate monitors. Shotgun Marine can help you choose based on your helm layout.
Does this display come with charts included?
Yes, a world basemap is included. C-MAP and Navionics cartography for your cruising area is available separately.
Can I run radar and autopilot through this display?
Yes, it connects to B&G Halo Radar, autopilot and ForwardScan over NMEA 2000 and NMEA 0183, plus Ethernet for radar and sonar sharing.
What's the warranty?
2 years manufacturer warranty, supported directly by Shotgun Marine as an authorised B&G dealer and installer.
Do you install Glass Helm systems?
This listing is supply only. Contact Shotgun Marine for a tech consult and installation quote once we know your boat and helm layout.
