Product Description
Furuno TZT24X 24" NavNet TZtouchXL MFD
The Furuno TZT24X is the 24" flagship display in Furuno's NavNet TZtouchXL range, the largest all-glass screen Furuno builds. Like the TZT22X, it's a network display rather than an all-in-one unit, so it's suited to owners building or upgrading a full NavNet system, or running a multi-station helm, rather than a first-time single-screen setup. Shotgun Marine supplies the TZT24X and can design the network around it, including radar, sounder modules and GPS sensors.
Key Features
- 24" wide, frameless all-glass touchscreen, Full HD 1920 x 1080 resolution for clear viewing at the helm
- Hexacore processor for fast chart redraws and smooth split-screen operation
- TZ MAPS charting with BathyVision bathymetric mapping
- AI Routing, AI Avoidance Route and Risk Visualizer when paired with a Furuno DRS radar
- Fish-It, Drift-It and Follow-It fishing assist features
- TZ Cloud support for backing up user data and settings
- Frameless design allows side-by-side mounting with other TZtouchXL displays for multi-screen helms

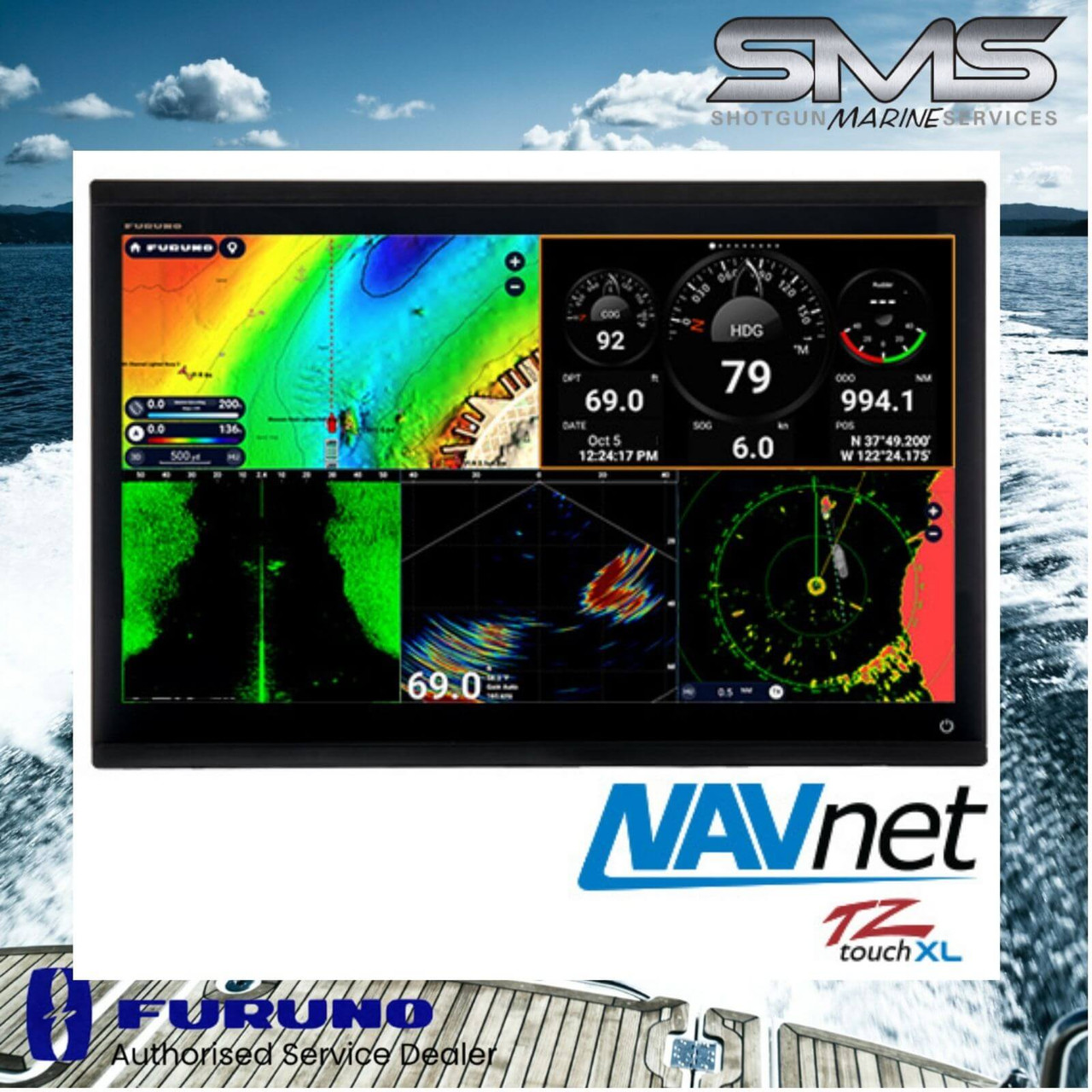

- Split-screen layout, up to six windows on the one display
Why Choose Shotgun Marine
Shotgun Marine is an authorised Furuno dealer with qualified technicians who install and support NavNet systems on boats across the Mid North Coast and Australia-wide. We give independent advice on what a display like the TZT24X actually needs around it, radar, sounder module, GPS sensor, network switches, before you commit to a full system. Every install is backed by our own workshop, not just a manufacturer warranty.
About the Furuno TZT24X

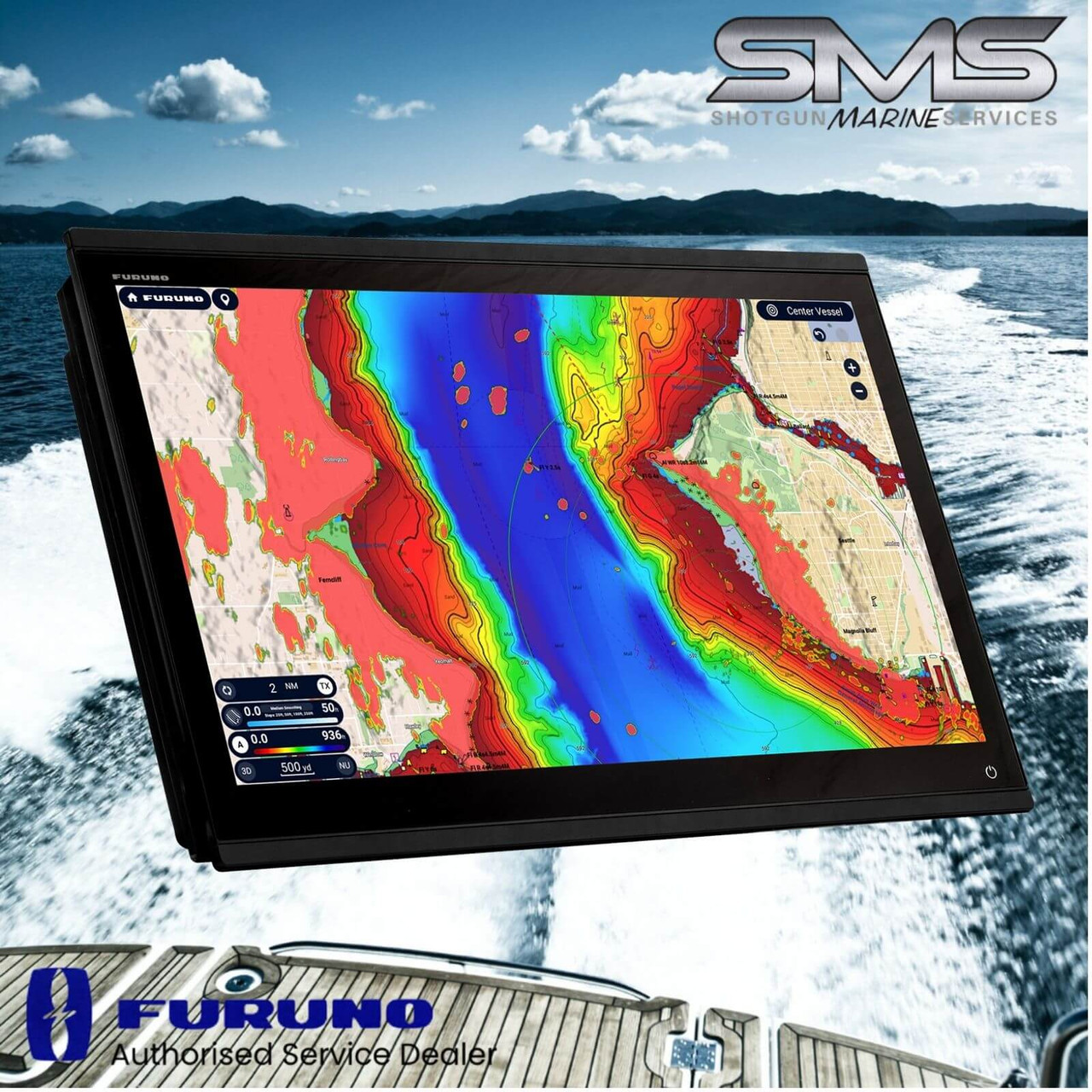

The TZT24X is the largest screen in Furuno's TZtouchXL range, one step up from the 22" model, and shares the same hexacore processor and feature set as the rest of the range. It doesn't include a built-in GPS receiver or fishfinder module, everything is added to the display over Furuno's NavNet network, which is normal for a display at this size and is how most flybridge and multi-station boats are set up anyway. That makes the TZT24X best thought of as the largest screen at the centre of a system, not a stand-alone chartplotter, and the system around it is where the real planning happens.
For boaties running an existing NavNet or TZtouchXL setup, the TZT24X adds the biggest possible second or primary screen without duplicating sensors you already own. For a new build, we'll help you work out what else the system needs before pricing the whole job.
Specifications
| Display | 24" wide TFT IPS LCD, all-glass touchscreen |
| Resolution | Full HD 1920 x 1080 |
| Processor | Hexacore |
| Built-in GPS | None, external GPS sensor required |
| Built-in Sounder | None, accessed via network sounder module |
| Charting | TZ MAPS with BathyVision, AI Routing, Risk Visualizer (with compatible DRS radar) |
| Power Input | 12 / 24 VDC |
| Mounting | Flush or bracket mount, side-by-side mountable with other TZtouchXL displays |
| Weight | Approx. 9.50 kg, estimated pending confirmed Furuno spec sheet |
| Manufacturer Part Number | TZT24X |
What's Included
- Furuno TZT24X 24" display unit
- Power cable and mounting hardware
- Furuno quick reference guide
GPS sensor, sounder module, transducer, radar and network cabling are not included and are quoted separately based on your boat and existing system.
Price shown is for the display unit, supplied only. Installation and any additional network hardware are quoted separately.
Installation and Compatibility
The TZT24X runs on Furuno's NavNet network, so it needs to be installed as part of a properly configured system rather than wired up on its own. Our technicians handle the network design, cabling and configuration, and will check compatibility with any existing Furuno gear already on board before finalising a quote. If you're planning a multi-screen helm, we can talk you through how side-by-side TZtouchXL displays are mounted and networked together.
Who This Suits
The TZT24X suits owners with, or planning, a full NavNet TZtouchXL system and wanting the largest available screen, offshore fishos and cruisers wanting maximum helm display area, and multi-station boats where the biggest second or third screen is needed at another helm position. It's not the right starting point if you want a simple, self-contained chartplotter with sounder built in, smaller TZtouchXL or TZtouch3 models are a better fit for that.
FAQs
Does the TZT24X have a built-in GPS or fishfinder?
No. It's a network display, so it needs an external GPS sensor and a network sounder module. We can spec these as part of your system.
What's the difference between the TZT22X and TZT24X?
Both are frameless all-glass TZtouchXL displays with the same feature set. The TZT24X is simply the larger of the two at 24" versus 21.5", for helms with more space or where maximum screen area matters.
Can I mount two TZT24X displays side by side?
Yes. The frameless all-glass design is built for side-by-side mounting with other TZtouchXL displays for multi-screen helms.
What radar works with the TZT24X?
It's compatible with Furuno's DRS Doppler and X-Class radar range. AI Routing and Risk Visualizer require a compatible DRS radar on the network.
Is installation included in the price?
No. The price shown is for the display unit supplied only. Installation, network hardware and any additional sensors are quoted separately once we know your boat and existing setup.
Related
See the full range on our Furuno brand page, including the TZT16X and TZT22X TZtouchXL displays.
Not sure what system you need around the TZT24X? Ask our marine electronics specialists and we'll help you spec it out.
